Modlite Modbutton Lite, Dual Lead Plug for Light & Laser


SweatshopSpeed™ — Order by 3PM Central for Same Day Shipping
No Backorders, All In-Stock Items are Ready to Ship

For when you want one switch that simultaneously activates both your weaponlight and laser at the same time.

Note: Only works on lasers with a CRANE laser plug

(1 customer review)

Earn up to 149 Sweatshop Cash.

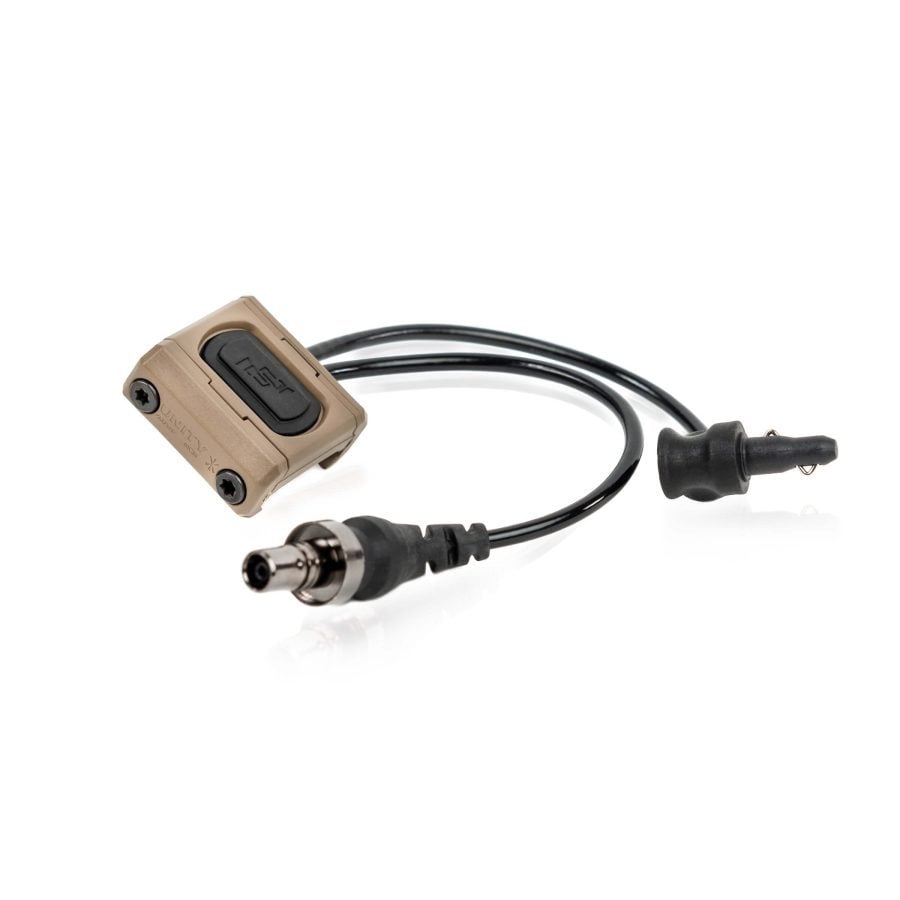

Modlite Modbutton Lite, Dual Lead Plug for Light & Laser

One ModButton Lite for simultaneous activation for both a Surefire/Modlite Scoutlight and a laser with a CRANE plug

ModButton Lite is a smaller, lighter-weight cousin to the original ModButton. The switch features the same momentary only activation as the original ModButton. It also features the same high power cable and switch from ModButton but in a slightly smaller package without the integrated mount. The switch is made from injection-molded plastic and fully potted to provide an extra degree of protection in harsh environments and ensures a durable long-lasting switch.

The Dual Lead variant is our same Modbutton Lite, but has both a Surefire®/Modlite and Crane Laser lead. This Modbutton Lite activates both leads simultaneously, allowing for an excellent vis override functionality of both white light and visible laser. There is no way to select a single lead for activation. For that, we recommend the Unity TAPS SNYC. Available here.

ModButton Lite utilizes a patented Unity Tactical design which supports power delivery needed by the next generation of high output weapon lights like Modlite. A Unity-built Surefire® compatible cable lead allows ModButton Lite to be backwardly compatible with all Surefire®, Arisaka, and Modlite Scout bodies as well as Surefire UE and DS00 tail caps. If constant on is a requirement we recommend using a SF DS00 tail cap which can be found here.

One problem that exists today is older legacy switches are not able to pass the current needed to run current and future generation lights. These older switch designs do not allow Modlite light heads to run at full power. Typically these switches reduce output by 15-20%. ModButton Lite utilizes an updated plug design as well as improved electronics that allow the ModButton Lite to output at full power so all the lumens and candela can be put to good use.

The package includes the switch PIC mounting rails and mounting hardware only no tail cap is supplied. We recommend the Surefire UE or DS00 tailcap which can be found here. Additionally, an adapter is also available for MLOK rails here.

Note on cable length options: For almost all use cases the 4.5in variant is what you want to buy. Unless you have a special setup the 4.5 in cable is going to be plenty even running a laser.

Made in the USA

Weight: 1.8oz
Dimensions: 1.0 × 3.8 × 5.7 in
Mounting Side: Left or Right
Color: Black or Tan

Additional information


Black, FDE

Cable Length

4.5", 7"
