Forward Controls Design Joint Muzzle Device Wrench

$33.25

SweatshopSpeed™ — Order by 3PM Central for Same Day Shipping
No Backorders, All In-Stock Items are Ready to Ship

(8 customer reviews)

33 in stock

Purchase this product now and earn 33 Sweatshop Cash!

Forward Controls Design Joint Muzzle Device Wrench

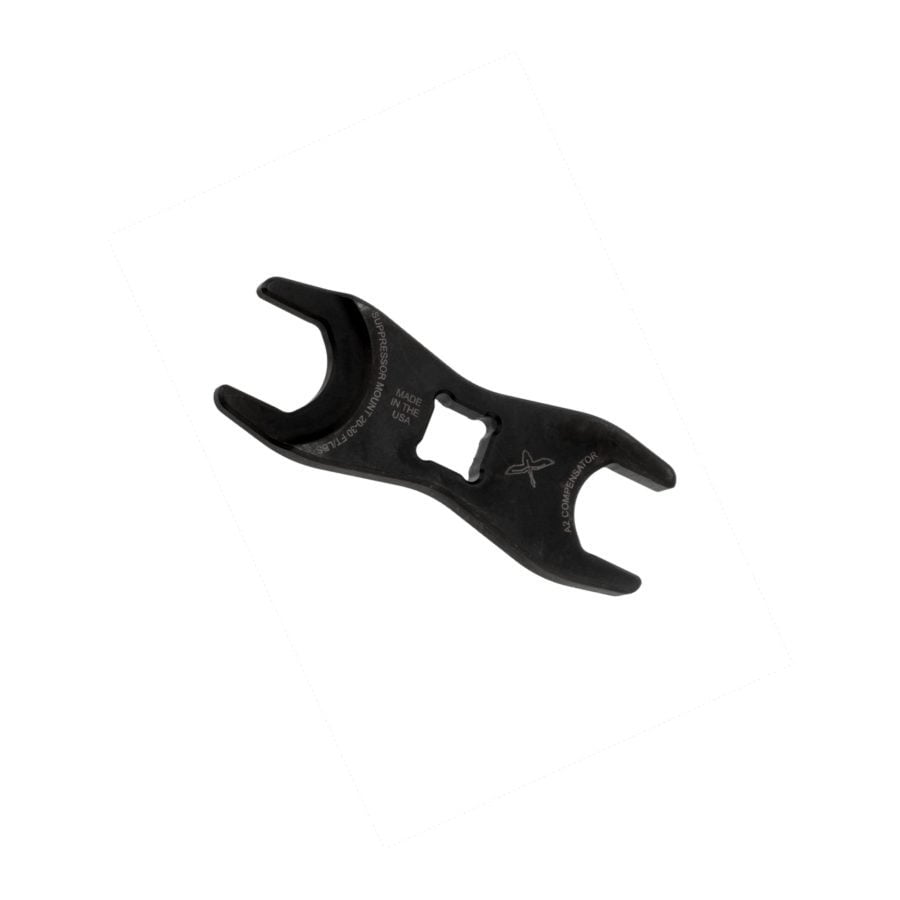

JMW is the newest addition to our line of dedicated, high quality AR15/M16 tools. It is a combination wrench with a 3/4 wrench with a 0.23 thickness for the A2 compensator, and another 3/4 wrench  with a 0.20 thickness for the Keymo, Key Micro mounts, such as our 6315KM, 6310KM, SOLGW’s NOX, and Dead Air’s flash suppressors, compensators and brakes. The 0.20 side is also suitable for use with other suppressor mounts that have thinner than A2 spec (0.23) flats.

JMW follows the well developed JCW (Joint Castle nut Wrench) form factor, it is a compact wrench designed to be used with a torque wrench (1/2 drive).

Most armorer’s wrenches have a rather thick 3/4 wrench for torquing the A2 compensator. While adequate for the A2 compensator, this presents an issue with muzzle devices with thinner than A2 spec flats, an armorer wrench’s 3/4 wrench often can’t find enough clearance, and  is too thick for the flats which are sandwiched between the barrel and the muzzle device’s sound suppressor mounting interface. To make things more complicated, some muzzle alignment shims can be of slightly larger outer diameter than the barrel. A typical 3/4″ wrench often can’t be used to torque these muzzle devices.

JMW’s thinner side of the 3/4″ wrench has a thickness (0.20) designed for muzzle devices with thinner than A2 compensator spec flats, such as Dead Air’s Keymo, Key Micro suppressor mounts, and Surefire suppressor mounts. Billet machined in 4140, heat treated and black oxided, it has the recommended torque value (20 to 30 ft/lb) laser engraved.

JMW is another joint project between Arson Machines and Forward Controls Design. Proudly designed and made in the USA.

8 reviews for Forward Controls Design Joint Muzzle Device Wrench

  1. poptartgun (verified owner)

    The Forward Controls Design Joint Muzzle Device Wrench relegates other armorer’s wrenches to the removal of muzzle devices only. Conventional wrenches can create too long a lever despite the torque wrench oriented perpendicular. The proximity of the 1/2″ drive interface to each end makes the FCD wrench perfect for the installation of a muzzle device at a specific torque accurately.

  2. Greg S. (verified owner)

    Wrench worked great for removing/installing a KAC QDC flash hider on a factory 11.5 CQB upper. There was just enough room to use the thicker side of the wrench. I wouldn’t have wanted to tackle the job with anything else. Fit the QDC with zero slop.
    Delivery was fast and accurate, and the ramen was excellent as always.

  3. Brian S. (verified owner)

    Definitely came in handy to get the KeyMo device torqued down. Recommend it if you’re doing them quite often. Whole order was processed and shipped quick.
