Arisaka Defense Side Scout Surefire/Modlite Scoutlight Mount, MLOK
The Side Scout tucks the light underneath either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ

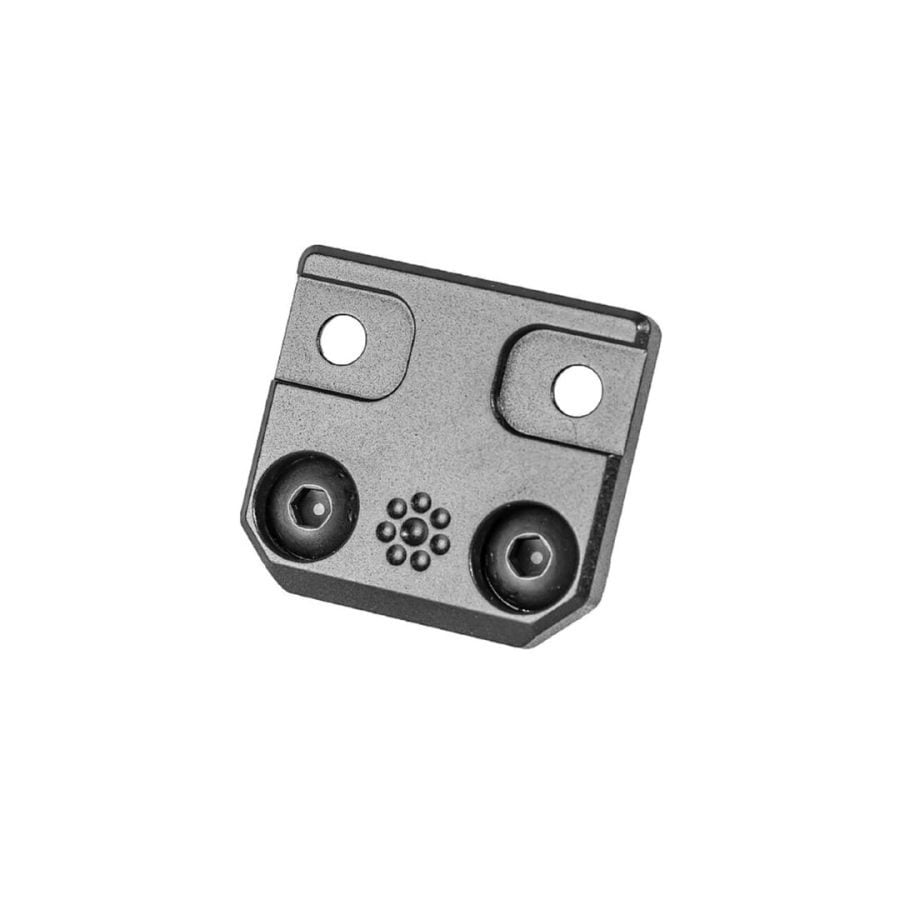

The Arisaka Side Scout (SSM) is designed for use with Surefire Scout Lights, the Modlite PLH and OKW weapon lights, the Arisaka 300 and 600 Series, the Streamlight Protac Rail Mount lights, and the Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards, and tucks the light underneath either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2.
Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300 and 600 Series.
The longer base Scout lights like the M620, M951/2 and M961/2 can be used with the Side Scout Mount with the addition of our Offset M620 adapter.
As a bonus, the Side Scout also works nicely on the Sig MPX PCC and MCX Virtus M-Lok handguards.
SKU: SSM-M
Length: 1.265″
Thickness: 0.2″
Weight: 0.6 oz
The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20/T20 Torx driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with medium strength threadlocker. Made in the USA.
andywangnn1117 –
Solid and the matte feel great
coryt0821 (verified owner) –
Works well and a strong company. Arisaka never ceases to impress.
BEE (verified owner) –
It’s a Arisaka Defense mount, expect no less. Worked well with a Surefire M600 Scout and a Somogear PEQ-15.
Brandon Kreke (verified owner) –
This was exactly what I was looking for! I was bummed when I found out my offset Arisaka mount didn’t play well with my PEQ-15. I was pleasantly surprised when I found this product and was able to put my light back where I wanted it! As with all Arisaka products that I’ve used, the machining is fantastic. Fit, form, and function are all top notch! You won’t be disappointed.
Joseph Blair (verified owner) –
Arisaka mounts are excellent fit, finish, and quality. I have a few of them. This was an easy choice for mounting my OKW under a Steiner dBal D2.
