Arisaka Defense Offset Surefire/Modlite Scoutlight Mount, MLOK

$45.00

SweatshopSpeed™ — Order by 3PM Central for Same Day Shipping
No Backorders, All In-Stock Items are Ready to Ship

(13 customer reviews)

Out of stock

You must register to use the waitlist feature. Please login or create an account

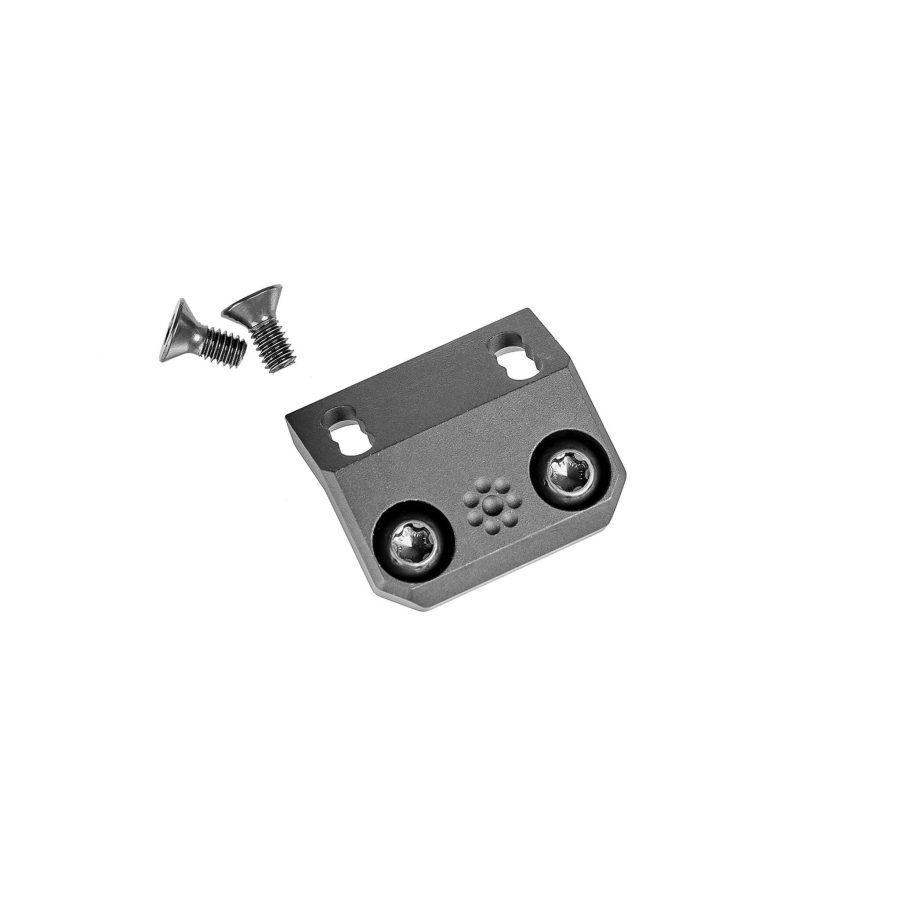

Arisaka Defense Offset Surefire/Modlite Scoutlight Mount, MLOK

The Offset Scout Mount provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories.

Patent Pending Arisaka Offset Scout Mount is designed specifically for the Modlite PLH and OKW weapon lights, the Surefire Scout Light M600 and M300 series weapon lights, the Arisaka 300 and 600 Series Lights, the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards. The Offset Scout Mount is very low profile at less than 0.20″ thick.

When used on the side mounting surfaces of M-Lok handguards, the Offset Scout Mount places the light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards, the light is located at approximately the 4:30 or 6:30 clock positions.

Three positions are provided, spanning approximately 0.240″.

As shown in the pictures, the Offset Scout Mount is compatible with most M-Lok handguards like the BCM MCMR, KAC URX4, and Geissele SMR MK8/14/16. It will not fit the handguard profile of the Aero Precision Enhanced Gen 2, SIG MPX, or MCX Virtus (unless using the suppressor width handguard).

Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300 and 600 Series.

Length: 1.265″

Weight: 0.4 oz

The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP25/T25 and IP20/T20 Torx driver for installation (not included). Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243. Made in the USA.
