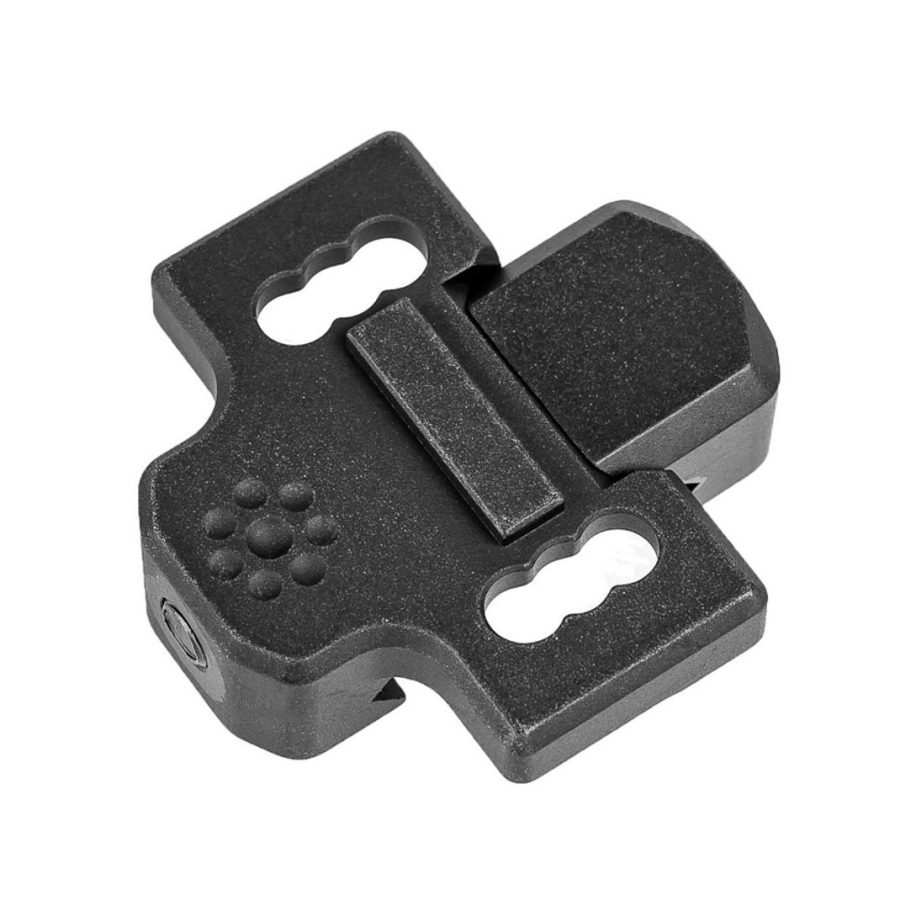

Arisaka Defense Inline Surefire/Modlite Scoutlight Mount, Picatinny
This mount is especially useful on rails with picatinny mounting sections when also using a laser
The Patent Pending Arisaka Inline Scout Mount is designed specifically for the Modlite PLH and OKW weapon lights, the Surefire Scout Light M600 and M300 series weapon lights, the Arisaka 300 and 600 Series Lights, the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount that tucks the light underneath either side of the B.E. Meyers MAWL laser/illuminator series. Three positions on the mount allow for different diameter light heads to clear the MAWL without interference.
Length: 1.265″
Thickness: 0.2″
Weight: 0.6 oz
The mount is CNC machined from 7075-T651 and 6061-T651 aluminum, and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP27 and IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 20 inch lbs for light body and 30 inch lbs for clamping screw with low/medium strength threadlocker (Loctite 222 or 243).
Hardware: One 10-32×1.25″ Torx cap head screw, two 8-32×3/8″ Torx flat head screws.
This product is covered by U.S. Patent No(s). 11385026 and other pending patents.
Made in the USA.
Pete K. (verified owner) –
This mount is awesome! Absolutely love it. Put it on my modlite 18650 body, and mounted it all onto my shotgun. Fits perfectly keeps it just in that sweet spot that doesn’t create too much shadow from the barrel. Arisaka mounts FTW!
andywangnn1117 –
Low profile mount. rock solid
