Arisaka Defense Inline Surefire/Modlite Scoutlight Mount, MLOK

Arisaka Defense Inline Surefire/Modlite Scoutlight Mount, MLOK

This mount is especially useful on handguards that feature 45 degree angle mounting flats.

The Patent Pending Arisaka Offset Scout Mount is designed specifically for the Modlite PLH and OKW weapon lights, the Surefire Scout Light M600 and M300 series weapon lights, the Arisaka 300 and 600 Series Lights, the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards.

The mount is especially useful on handguards that feature 45 degree angle mounting flats, such as the BCM MCMR, Geissele Automatics SMR MK4, MK8 and MK16, Daniel Defense MFR, KAC URX4, ALG Defense EMR, MI Gen 3, Mega MML and Mega/Hodge Wedge Lock.

When used on a 45 degree angle mounting flat, the Inline Scout Mount allows the user to position the light closer or farther away from the top 12 o’clock rail to give clearance for front sights or other accessories. Three positions are provided, allowing an offset of 0.12″ to either side of center. The base of the Surefire Scout Light sits only 0.2″ above the mounting surface.

Installation tip: In order to reduce the overall length of the mount as much as possible, it is necessary to unscrew the tail cap of the light to access the front-most mounting screw.

This mount is not intended for use in a cantilever fashion where it hangs off the end of the handguard.

Fit with front sights varies depending on mounting location on handguards with 45 degree flats:

1. Top left 45 degree flat: Most sights work, including MBUS Pro, Knight’s Armament Micro, Troy folding, and Diamondhead. MBUS Gen II work if positioned to allow clearance for the release tab.

2. Top right 45 degree flat: Due to the asymmetrical body of the Surefire Scout Light, placement of the front sight and light are more critical in this setup. The smaller sights like MBUS Pro and Knight’s Armament Micro work fine, but the Troy, Diamondhead, and MBUS Gen II will not be able to clear the main body where the screw holes reside for the stock picatinny adapter. This means one or the other will have to be moved forward/back to get appropriate clearance.

Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300 and 600 Series.

Length: 3.4″

Height: 0.20″ (at Surefire Scout Light mounting point)

Weight: 0.6 oz

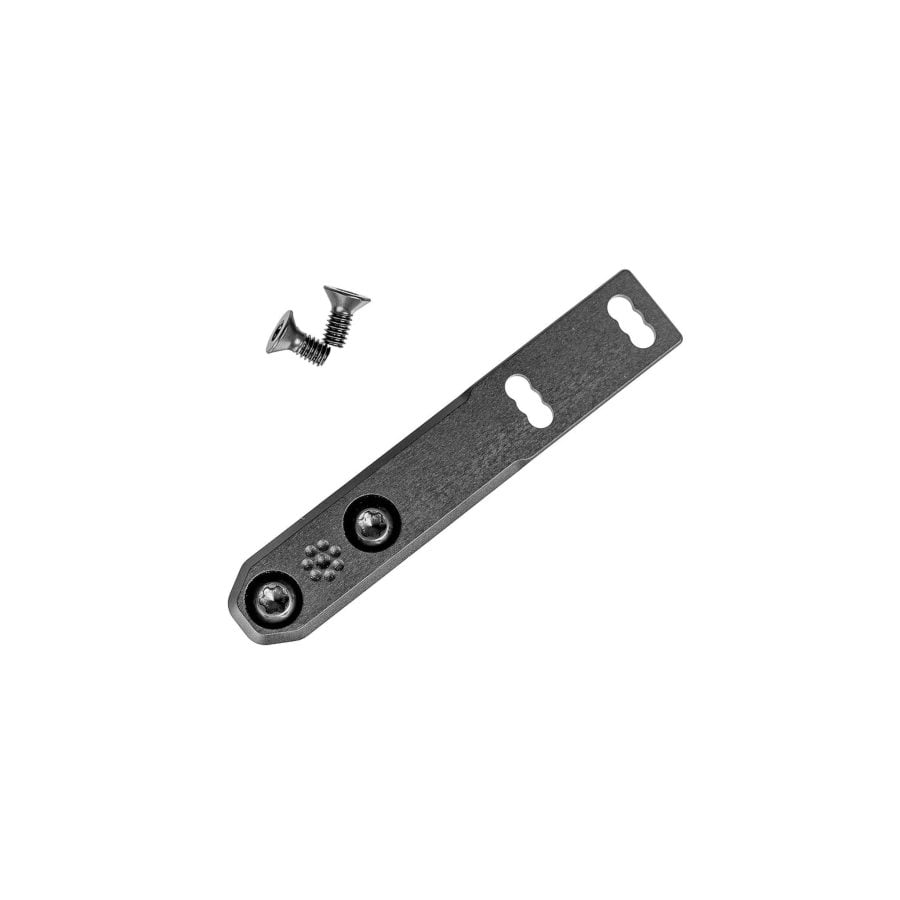

The mount is CNC machined from 7075-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP25/T25 and IP20/T20 Torx wrench for installation (not included). Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243. Made in the USA.
