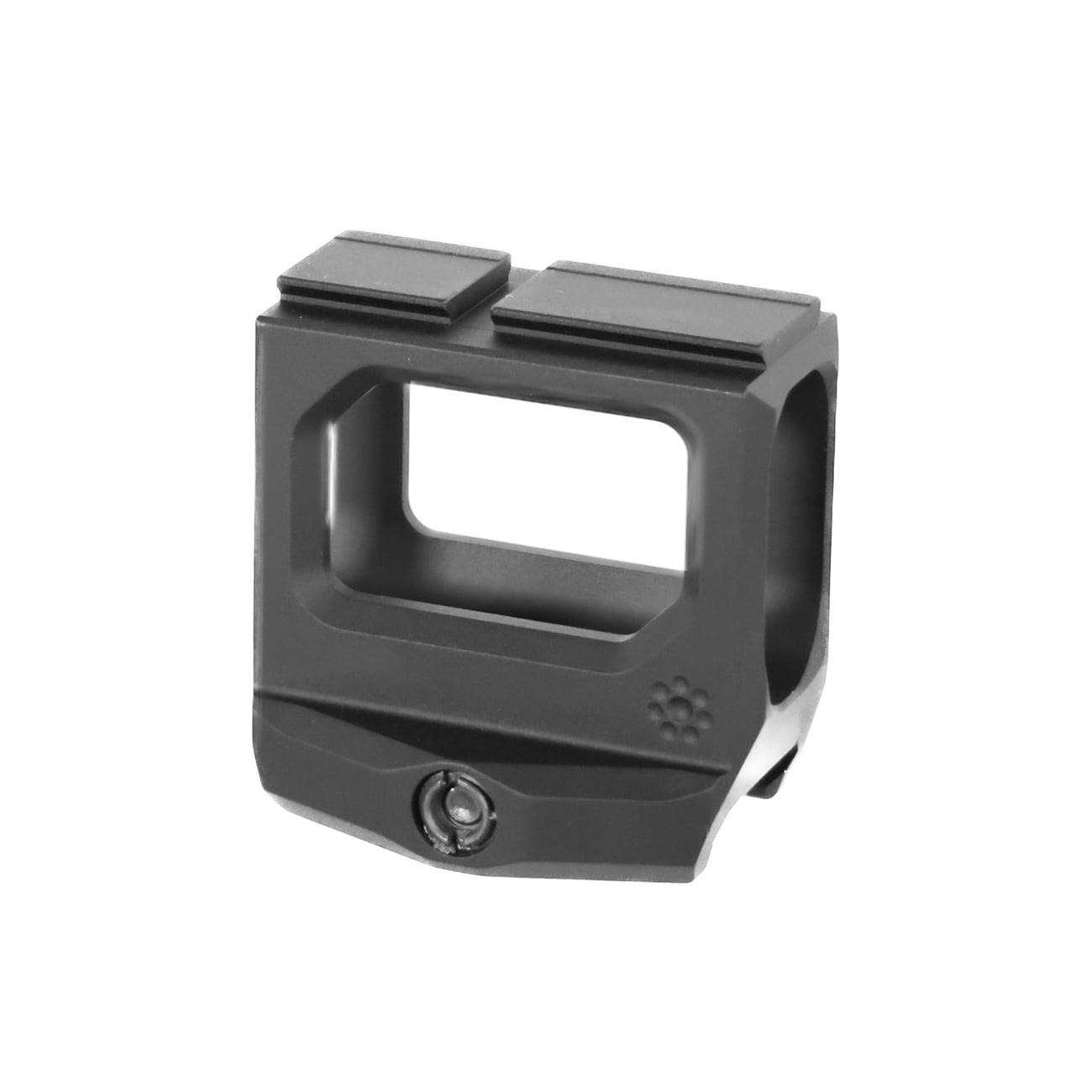

Arisaka Defense Aimpoint ACRO MK2 Mount, 2.26″

Arisaka Defense Aimpoint ACRO MK2 Mount, 2.26″

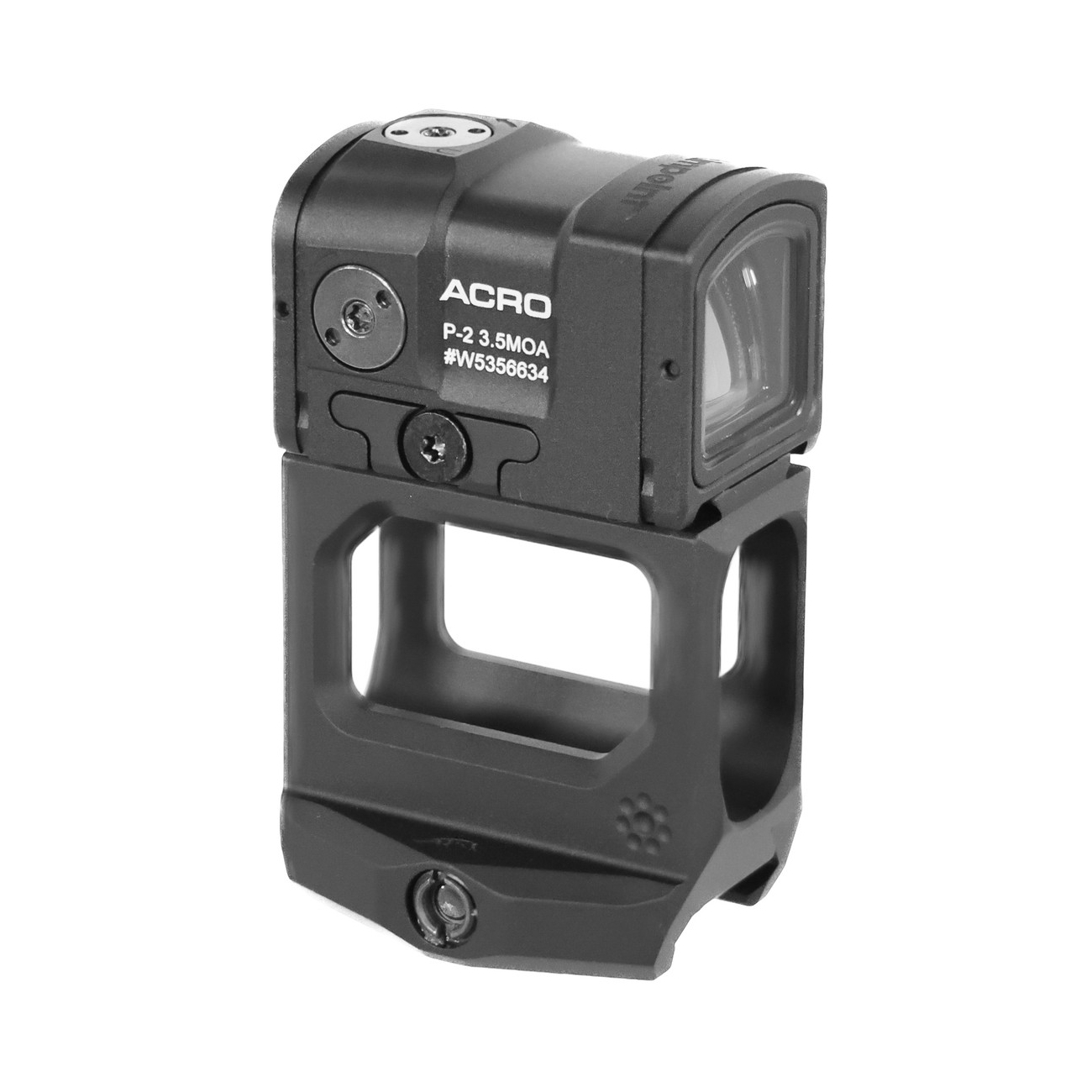

The Arisaka Aimpoint ACRO Mk2 Mount is designed for the Aimpoint ACRO P2 optic.

The Arisaka Aimpoint Acro Mount Mk2 is available in 1.54″, 1.93″, and 2.26″ heights. 1.54″ is considered lower 1/3 co-witness, meaning standard AR height iron sights are visible in the lower 1/3 of the red dot optic lens. 2.26″ matches up with the Unity FAST FTC Magnifier Mount. AR height irons sights are visible through the window underneath the optic only with the 2.26″ Aimpoint Acro Mount Mk2.

Weight (including screws):
1.54″ – 2.5 oz
1.93″ – 2.7 oz
2.26″ – 2.8 oz

If you intend to use iron sights that are visible through the window in the mount, they need sit above the mounting rail surface by at least 0.29″ for 1.54″ mounts and 0.32″ for 1.93″/2.26″ mounts.

Each mount is CNC machined from 7075-T651 aluminum and MIL-A-8625 Type III hard coat black anodized. If selected, FDE Cerakote is applied on top of the hard coat anodizing. Includes necessary screws to attach optic to mount. Requires a T10 Torx driver to secure the Acro to the mount, and a T27 or IP27 Torx driver to secure the mount to your picatinny rail.

Recommended torque values:
Picatinny clamp – 50 inch lbs (5.7 Nm)
Optic to mount – 25 inch lbs (2.8 Nm)

Hardware: One 10-32×1.25″ torx socket cap screw.

Made in the USA.
